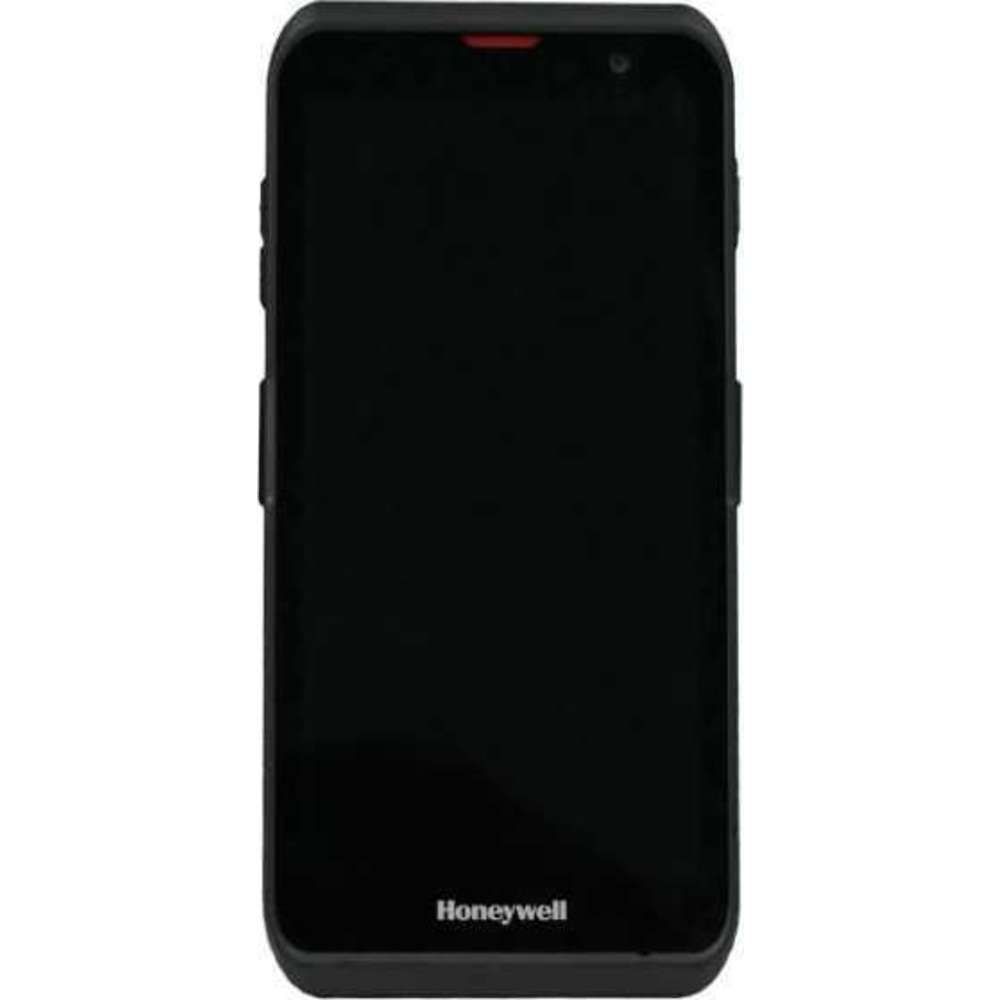

Honeywell EDA52 PDA
Honeywell EDA52

Processor: Qualcomm Snapdragon SM6115,

Quad high-performance Kryo cores 2.0 GHz +Quad low-power Kryo cores 1.8 GHz

Memory: 3 GB RAM/32 GB Flash; 4 GB RAM/64 GB Flash; 6 GB RAM/128 GB Flash

Operating System: Android 11, and upgradeable to Android 13*

Storage Expansion: MicroSD (up to 128 GB) Rear Camera: 13-megapixel color camera Front Camera: 5-megapixel color camera PC Interface: USB 2.0 with Type-C interface Interface Ports: 2 pin bottom connection Battery: Li-Ion, 3.8 V, 4,500 mAh, removable Real-Time Clock (RTC):

10 min backup via super-cap

Charging Time: less than 3.5 hours Battery Runtime: more than 12 hours Scan Engine: Honeywell S0703 Slim Imager (1D/2D barcode symbologies)

MECHANICAL Dimensions:

159mm x 75 mm x 14.4 mm (6.26 in x 2.95 in x 0.57 in) Weight: 258g

Display Size: Gorilla Glass 5, size 13.84cm (5.45 in) Resolution: 1440 x 720 High Definition Backlight: LED

Touchscreen: Multi-touch capacitive (CTP), GFF Hard Keys: 5 side keys for volume up/down, right and left scan keys and power on/off

ACCESSORIES

Single Charging Home Base: Charges one terminal and one replaceable battery simultaneously Backwards Adaptor Cup: Be compatible with EDA50/51 single charging dock

Standard Battery Pack Quad Bay Battery Charger

RFID Bracket Scan Handle Rubber Boot Wrist Strap Hand Strap Screen Film

Single Charging Dock: Charges one terminal Quad Bay Charging Base: Charges four terminals simultaneously

LED

Battery Status Indicator: red/green/blue Scan Indication: red/green

Sensors: acceleration sensor, light sensor, and proximity sensor

Localization & Language: Worldwide English

WIRELESS CONNECTIVITY WLAN (Wi-Fi Alliance certified) :

IEEE 802.11 a/b/g/n/ac

Additional WLAN Features:

802.11 d/e/h/i/k/ r/u/w

WLAN Security: OPEN, WEP, WPA/WPA2 (Personal and Enterprise WPA2), WPA3 (OWE, SAE, Enterprise)

WLAN Supported EAP:

TLS, PEAP, TTLS, PWD, LEAP Bluetooth®: Bluetooth Class 5.1 WWAN Radio:

• GSM/EDGE: Bands 2, 3, 5, 8

• UMTS/HSPA+: Bands 1, 2, 4, 5, 6,8, 9, 19

• FDD-LTE: Bands 1, 2, 3, 4, 5, 7, 8, 9,

12,13,17,19,20,25,26,28,30,66

• TDD-LTE: Bands 38, 39, 40, 41

NFC: Integrated Near Field Communication GPS (WWAN only) Supported Protocols:

Simultaneous receiver support for GPS, GLONASS, and BeiDou

ENVIRONMENTAL Operating Temperature:

-20°C to +50°C (-4°F to +122°F)

Storage Temperature:

-30°C to +70°C (-22°F to 158°F) Humidity: 5% to 90% (non-condensing)

Drop: Multiple 1.3m (4.3ft) per MIL-STD 810G drops to concrete at room temperature Multiple 1.5m (5ft) per MIL-STD 810G drops with rubber boot concrete at room temperature Tumble: 550 times at 0.5 m (1.64 ft) Environmental Sealing: IP67 Electrostatic Discharge (ESD):

±8 kV direct; ±15 kV air

SYSTEM ARCHITECTURE Processor: Qualcomm Snapdragon SM6115,

Quad high-performance Kryo cores 2.0 GHz +Quad low-power Kryo cores 1.8 GHz

Memory: 3 GB RAM/32 GB Flash; 4 GB RAM/64 GB Flash; 6 GB RAM/128 GB Flash

Operating System: Android 11, and upgradeable to Android 13*

Storage Expansion: MicroSD (up to 128 GB) Rear Camera: 13-megapixel color camera Front Camera: 5-megapixel color camera PC Interface: USB 2.0 with Type-C interface Interface Ports: 2 pin bottom connection Battery: Li-Ion, 3.8 V, 4,500 mAh, removable Real-Time Clock (RTC):

10 min backup via super-cap

Charging Time: less than 3.5 hours Battery Runtime: more than 12 hours Scan Engine: Honeywell S0703 Slim Imager (1D/2D barcode symbologies)

WARRANTY

One-year factory warranty

For more information

For a complete listing of all compliance approvals and certifications,

please visit

www.honeywellaidc.com/compliance.

For a complete listing of all supported barcode symbologies, please visit

www.honeywellaidc.com/symbologies
